WIN-001 Pull-in Winch

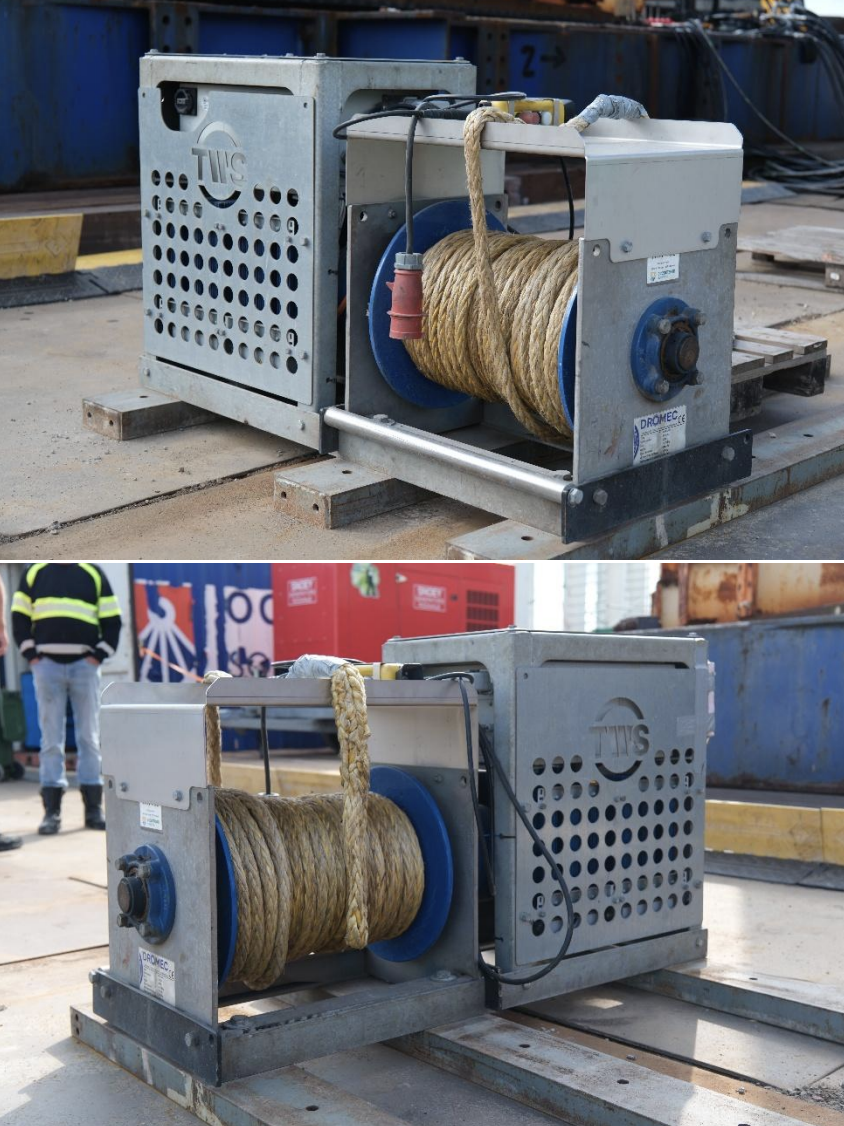

Oceanteam Cable Solutions builds and owns a large pool of cable handling equipment including auxiliary equipment such as winches, chutes and roller blocks. This electrically powered 3.5mT (3rd layer) pull-in winch is fitted on a sacrificial foundation which can either be cargo strapped, ballasted (typically with concrete blocks) or welded to a frame/deck. This is a compact electric hoisting winch. This winch is provided with frequency control, overload and temperature protection as standard. The WLL is 4200 kg when used as a pulling winch. With its constant tension design, this winch provides a reliable support while ensuring safety to the handled product. This item is provided with a 100m Ø20mm 340kN UHMPE 12str spliced hard eye rope which can be replaced on request. The winch is provided with a 5m remote control and lift points for easy handling.
Get a free quote
General
specifications
- Working Load, 1st Layer: 4.2 t
- Working Load, 3rd Layer: 3.5 t
- Working Load, 5th Layer: 3.0 t
- Operating Speed, 3rd Layer: 9.2 m/min
- Operating Speed, 5th Layer: 11.7 m/min
- Footprint Excluding Foundation (L × W × H): 1.50 × 0.50 × 0.83 m
- Weight Excluding Rope and Foundation: 500 kg
- Drum Dimensions (Ø × L): 245 × 500 mm
- Flange Diameter: 460 mm
- Drum Capacity: 100 m of Ø20 mm rope, 5 layers
- Safety: Fail-Safe Brake
- Protection Rating: IP56
- Input Voltage: 380–480 V
- Frequency: 50–60 Hz
- Current: 32 A
- Motor Power: 6 kW
- Configuration: Star
