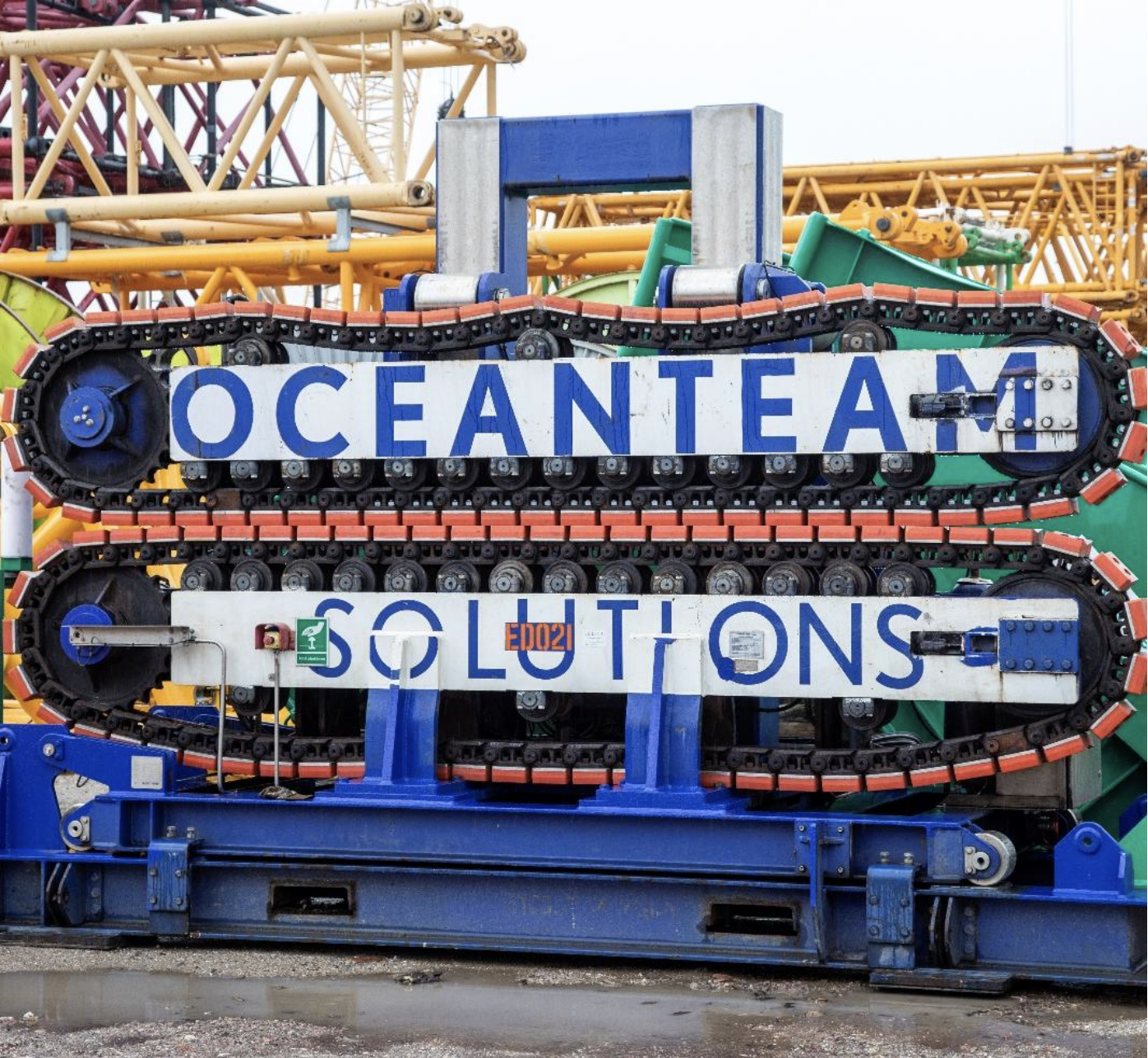

ED-021 Tensioner 15mT
Oceanteam Cable Solutions owns a large pool of cable handling equipment including various track tensioners and wheel pair tensioners. The ED-021 is a 15mT track tensioner. The tensioner is an electrically operated caterpillar track type tensioner with a 3000mm track contact length, perfectly fit for handling subsea power cables and subsea umbilicals. The robust system can be easily transported on road or vessel and set-up at final location, either bolted or welded, via a sacrificial skid frame. The tensioner can be delivered plug & play with a containerized HPU and a fit for purpose control cabin. The system is controlled through a control console which can be positioned at convenience in the control cabin.
Get a free quote
General
specifications
- Pull Force (Idler End): 15 mT
- Push Force (Idler End): 12 mT
- Track Pinch Force: 500 kN
- Max. Design Speed: 740 m/hr
- Product Diameter: 70–630 mm
- Track Contact Length: 3,000 mm
- Max. Track Opening: 700 mm
- Total Footprint (L × W × H): 5.83 × 1.85 × 3.43 m
- Total Dry Weight: 17 mT
- HPU: 10 ft containerized
- HPU Total Footprint (L × W × H): 3.00 × 2.44 × 2.59 m
- HPU Total Dry Weight: 3.0 mT
- Max. Operating Pressure: 250 bar
- HPU Input Voltage: 415–440 V
- Frequency: 50/60 Hz
- Current: 90 A
- Configuration: Star
